Description

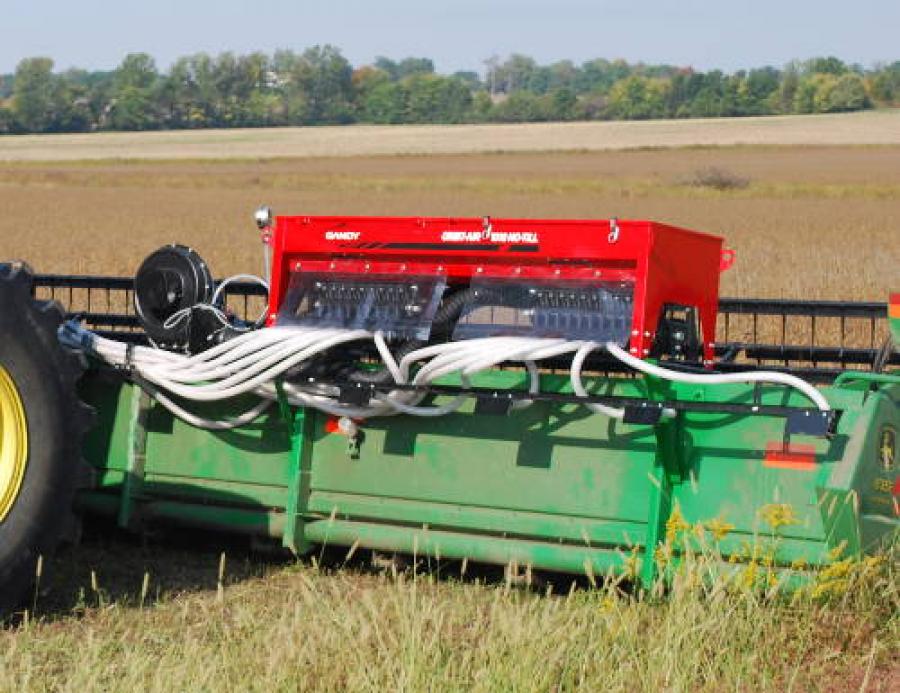

planter air clutches Low Profile, 10 cu ft 18-outlet with Split Shaft & Two Clutches for Cover Crops10 cu. ft., (approx. 8 bushels or 450 lb. granular chemical capacity) Plant cover crops such as annual rye grass, turnips, tillage radishes and more in a single pass while harvesting row crops. 18 outlets, split shaft, 2 clutches. 12 volt, 25 amp, fixed speed motor. Non speed compensated. Metering Wheels Black metering wheels for cover crops and granular chemicals. (Installed) Red (Included) Includes 1 2 Rate Wheels for Both Outside Rows (two each
- 10 cu. ft., (approx. 8 bushels or 450 lb. granular chemical capacity)
- Plant cover crops such as annual rye grass, turnips, tillage radishes and more in a single pass while harvesting row crops.
- 18-outlets, split shaft, 2 clutches.
- 12-volt, 25-amp, fixed speed motor.
- Non-speed compensated.
- Metering Wheels -
- Black metering wheels for cover crops and granular chemicals. (Installed)
- Red (Included)
- Includes 1/2 Rate Wheels for Both Outside Rows (two each black and red)
- Hydraulic blower driven by a 2-port, 4-GPM hydraulic blower motor producing 8-20 oz. of air pressure
- 10-ft. of hydraulic hose is supplied for input and outlet ports - user to supply additional hydraulic hose and couplers
- Zero-Max rate controller is mounted to hopper with convenient dial indicator to set rates.
- In-cab control box monitors shaft to indicate metering wheels are rotating and warn if loss of air pressure
- 18-outlet deflector package for 1-1/4" ID tubing includes deflectors and angle iron mounting straps to effectively broadcast seed under and behind combine header.
- System includes a run/hold switch that mounts between the combine and header that automatically turns the metering system on when head is lowered and off when head is raised
- Maximum broadcast width of 30 feet at deflector spacing not exceeding 30".
- Unit comes mounted to a 2-1/2" x 2-1/2" square steel tubular mounting frame - operator may need to provide additional tubing, brackets, etc., to clear cylinders, leveling bars, etc., when attaching to parent implement.
- Weather-tight cover and latches.
